FD2150V Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers
Item # FD2150V

FD2150V
FD2150V
FD2150V

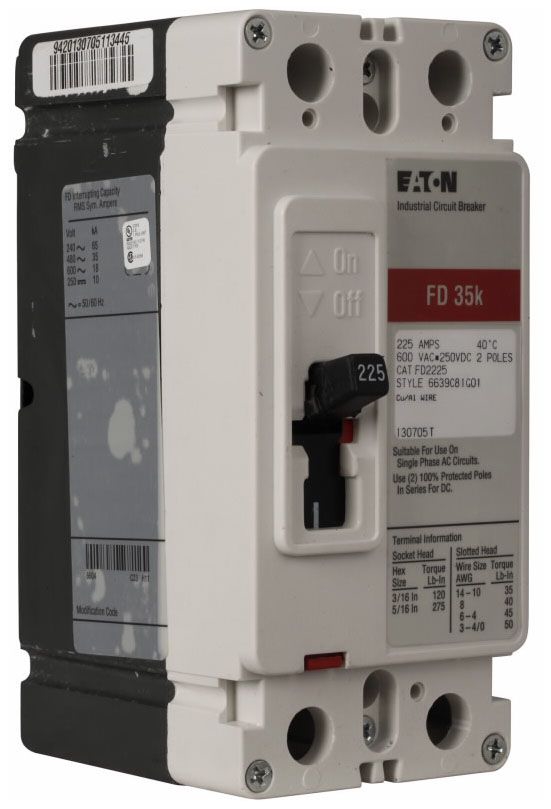

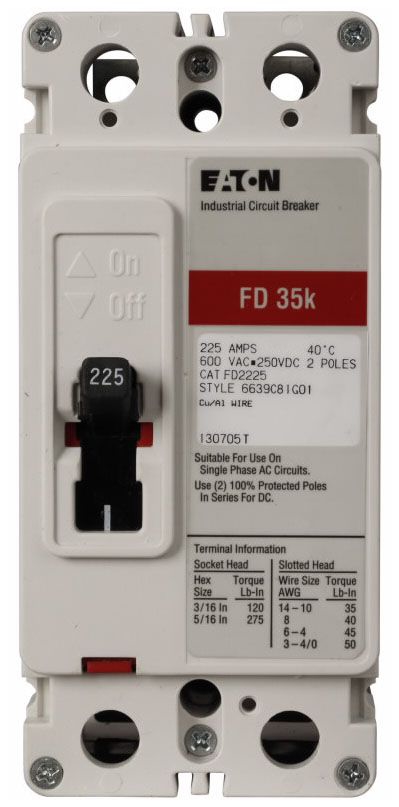

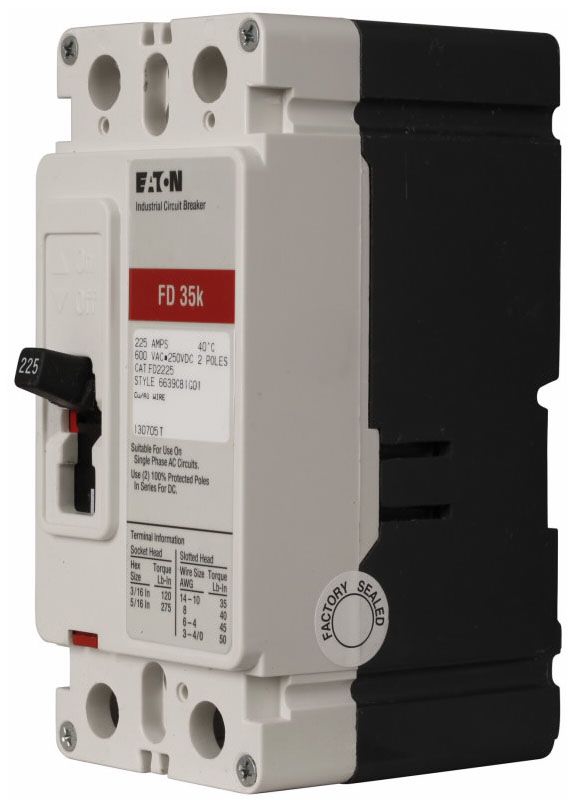

NOTE: Images are for Reference Only

Product Details and Specifications

Type FD
Amperage 150
Poles 2
Voltage 600
Short Circ Int Cap 35kA@480V

FD2150V Description

Molded Case, Thermal Magnetic; F-Frame, Series C; 600 VAC AT 50/60 Hz, 250 VDC; 150A AT 50 DEG C; 2P; Interrupting Rating 65kA AT 240 VAC, 35kA AT 480 VAC, 18kA AT 600 VAC, 10kA AT 250 VDC; 65kA AT 220/240 VAC, 35kA AT 380/415/440 VAC, 18kA AT 500 VAC, 10kA AT 250 VDC; Load Side Lugs; Size 2.75 Inch W X 3.375 Inch D X 6 Inch H; FD Model Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$497.00

Out of stock

$646.10

Out of stock

Call For Best Price

Out of stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

600 VAC 50/60 Hz, 250 VDC, 150 A, 35 kA, 2-Pole, FD Frame, Non-Interchangeable Trip Thermal Magnetic, Molded Case Circuit Breaker with 50 Deg C calibration
Molded Case, Thermal Magnetic, Non-Interchangeable
FD
600 Volt AC at 50/60 Hertz, 250 Volt DC (UL, IEC)
600 Volt
250 Volt

Features and Benefits

F-Frame Circuit Breakers are HACR Rated; All Circuit Breakers 10 Through 30 Amperes are Suitable for HID (High Intensity Discharge) Use; All F-Frame Circuit Breakers are Suitable for Reverse Feed Use
Includes Non-Interchangeable Trip Unit, 50 Deg C Calibration; Application Panelboard, Switchboard and Motor Control Center; Applicable Standard IEC 60947-2, NEMA AB1, AS 2184, BS 4752, SABS 156, SEV 157-1, VDE 0660, Federal Specification W-C375B
