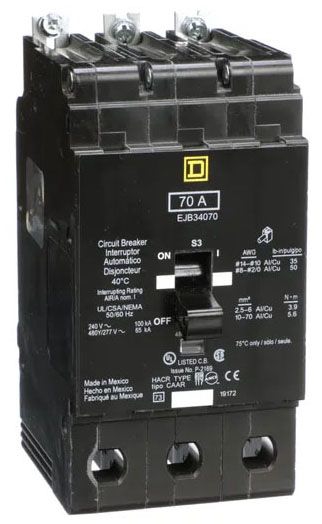

EJB34070 Square D / Schneider Electric Miniature Circuit Breakers
Item # EJB34070

EJB34070

NOTE: Images are for Reference Only

Product Details and Specifications

Type EJB
Amperage 70
Poles 3
Voltage 480
Short Circ Int Cap 65kA@480V
Mounting Type Bolt-On

EJB34070 Description

Square D, Miniature, Circuit Breakers, Type EJB, 70A, 3P, 480Y/277 VAC, Bolt-On, 14-2/0 AWG Al/Cu, Thermal Magnetic, E-Frame, Interrupting Current: 65 kA at 480 VAC / 100 kA at 240 VAC, For NF Panelboards Miniature Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

480 Star/277 VAC, 70 A, 65 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
Thermal Magnetic, Branch, Miniature
480 Star/277 Volt AC
70 Amp
3
65 Kiloamp at 480 Star/277 Volt AC

Features and Benefits

Short Circuit/Overload Protection; HACR Rated; RoHS/REACH Compliant; Mercury-Free
RoHS/REACH Compliant; Overall Dimension 2.94 Inch Width x 4.05 Inch Depth x 5.66 Inch Height; Frame Type E; Terminal Type Lug Aluminum; Terminal Wire Size 12 to 2/0 AWG (Aluminum), 14 to 2/0 AWG (Copper); Operation Ambient Air Temperature Rating 104 Deg F
