EHD2010 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers
Item # EHD2010

EHD2010
EHD2010

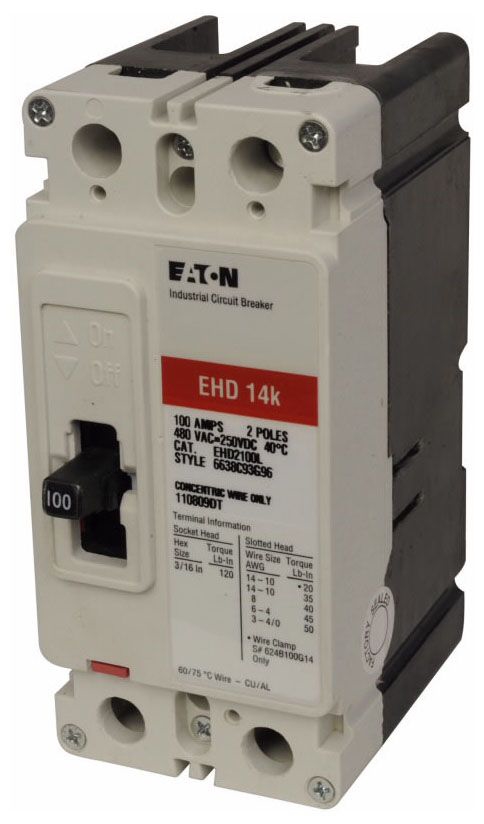

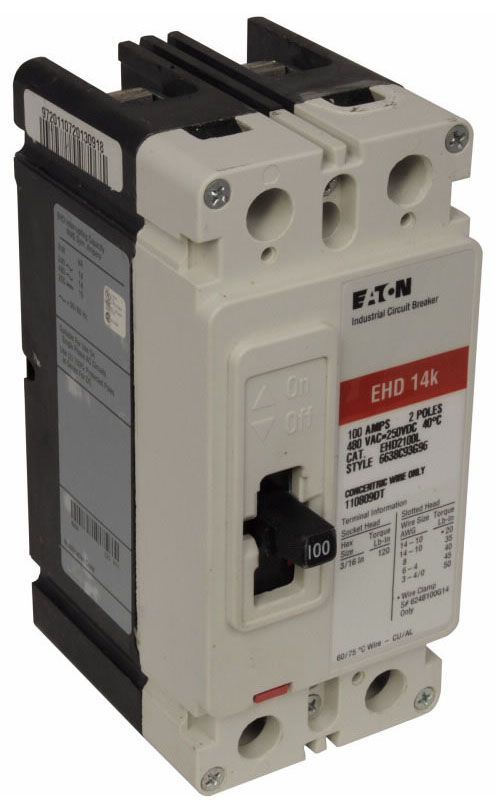

NOTE: Images are for Reference Only

Product Details and Specifications

Type EHD
Amperage 10
Poles 2
Voltage 480
Short Circ Int Cap 14kA@480V

EHD2010 Description

SERIES C F-FRAME MOLDED CASE CIRCUIT BREAKER 2P 10A CB Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$74.00

1 in stock

$96.20

Out of stock

Call For Best Price

Out of stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

Non-Interchangeable Trip Circuit Breaker; Type Fixed Thermal Magnetic, Molded Case; Frame Type FD; Voltage Rating 480 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 480 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 10 Amp at 40 Deg C; Number of Poles 2; Interrupting Rating 18 Kiloamp at 240 Volt AC, 14 Kiloamp at 480 Volt AC, 10 Kiloamp at 250 Volt DC (UL), 18 Kiloamp at 220/240 Volt AC, 14 Kiloamp at 440 Volt AC, 10 Kiloamp at 250 Volt DC (IEC); Terminal Type Load; Size 2.75 Inch Width x 3.38 Inch Depth x 6 Inch Height; Approval UL 489, CSA C22.2; Application HACR, Switchboard; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 13b
Fixed Thermal Magnetic, Molded Case
FD
480 Volt AC 50/60 Hertz, 250 Volt DC
480 Volt
250 Volt

Features and Benefits

All Eaton's F-Frame Circuit Breakers are HACR Rated; All Circuit Breakers 10 through 30 Amp are Suitable for HID (High Intensity Discharge) Use
Application HACR, Switchboard; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 13b

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The EHD2010 Eaton / Cutler-Hammer / Westinghouse Molded Case from Relectric

Relectric stocks new and used EHD2010 Eaton / Cutler-Hammer / Westinghouse Molded Case and many more brand-name electrical supplies. All of our reconditioned EHD2010 Eaton / Cutler-Hammer / Westinghouse Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your EHD2010 Eaton / Cutler-Hammer / Westinghouse Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the EHD2010 Eaton / Cutler-Hammer / Westinghouse Molded Case. Contact one of our sales consultants today.
