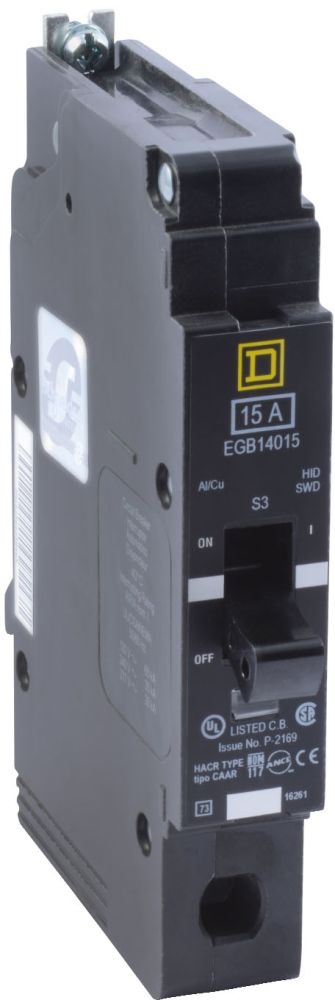

EGB14015 Square D / Schneider Electric Miniature Circuit Breakers

Name: EGB14015 Square D / Schneider Electric Miniature Circuit Breakers
Brand: Square D / Schneider Electric
Price: 77.5 USD
Availability: InStock

Item # EGB14015

NOTE: Images are for Reference Only

Product Specifications

Type: EGB
Amperage: 15
Poles: 1
Voltage: 277
Short Circ Int Cap: 35kA@277V
Mounting Type: Bolt-On
Accessories: HID Rated
Features: SWD Rated
Grouping: NF Panel

EGB14015 Description

Square D, Circuit Breaker, Miniature, E-Frame, 15A, 1P, 277VAC, Bolt-On, 14-6 AWG Al/Cu, Thermal Magnetic, Interrupting Current 35kA at 277VAC / 65kA at 240VAC, For NF Panelboards, Switching Duty Rated, High Intensity Discharge Rated Miniature Circuit Breakers from Square D / Schneider Electric

Buy Now

RE-Certified more info

INSPECTED & TESTED
1 Year Warranty

$77.50

1 in stock
RE-Certified Plus more info

RESA Certified
2 Year Warranty

$100.75

Ships in 0-2 Working Days
New Surplus more info

Guaranteed New
1 Year Warranty

$128.50

Ships in 0-2 Working Days

Qty

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?

Request Quote or Info

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Extended Details

Description:

277 VAC, 15 A, 35 kA, 1-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker

Type:

Thermal Magnetic, Branch, Miniature

Voltage Rating:

277 Volt AC

Current Rating:

15 Amp

Number of Poles:

Interrupting Rating:

35 Kiloamp at 480 Star/277 Volt AC

Ask an expert

Our experts can help.

800.497.6255

Summary

The EGB14015 Square D / Schneider Electric Miniature from Relectric

Relectric stocks new and used EGB14015 Square D / Schneider Electric Miniature and many more brand-name electrical supplies. All of our reconditioned EGB14015 Square D / Schneider Electric Miniature have been professionally tested and certified, and we guarantee their performance. You can also order your EGB14015 Square D / Schneider Electric Miniature configured to your specifications. Relectric also carries a large stock of replacement parts for the EGB14015 Square D / Schneider Electric Miniature. Contact one of our sales consultants today.

Features and Benefits

Features/Benefits:

Short Circuit/Overload Protection; HACR Rated; RoHS/REACH Compliant; Mercury-Free

Additional Information:

RoHS/REACH Compliant; Overall Dimension 0.98 Inch Width x 4.05 Inch Depth x 5.66 Inch Height; Frame Type E; Terminal Type Lug Aluminum; Terminal Wire Size 12 to 6 AWG (Aluminum), 14 to 6 AWG (Copper); Operation Ambient Air Temperature Rating 104 Deg F
