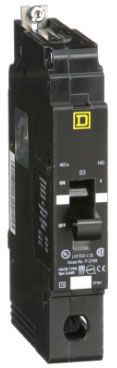

EDB14030 Square D / Schneider Electric Miniature Circuit Breakers
Item # EDB14030

EDB14030

NOTE: Images are for Reference Only

Product Details and Specifications

Type EDB
Amperage 30
Poles 1
Voltage 277
Short Circ Int Cap 18kA@277V
Mounting Type Bolt-On
Accessories HID Rated
Grouping NF Panel

EDB14030 Description

Square D, Miniature, Circuit Breakers, Type EDB, 30A, 1P, 277 VAC, Bolt-On, 14-6 AWG Al/Cu, Thermal Magnetic, Interrupting Current: 18 kA at 480 VAC, High Intensity Discharge (HID) Rated Miniature Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

Call For Best Price

2 in stock

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

5 in stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

277 VAC, 30 A, 18 kA Interrupt Rating, 1-Pole, Black, Bolt-On, Thermal Magnetic, E-Frame, Panelboard Miniature Circuit Breaker
Thermal Magnetic, E-Frame
277 Volt AC
30 Amp
1
18 Kiloamp at 120/240/277 Volt AC, 25 Kiloamp at 120 Volt AC

Features and Benefits

Short Circuit/Overload Protection; HACR Rated; Mercury-Free; Green Premium Products; RoHS/REACH Compliant
RoHS/REACH Compliant; Overall Dimension 0.98 Inch Width x 4.05 Inch Depth x 5.66 Inch Height; Holding Current Rating 270 Amp; Wire Size 12 to 2/0 AWG (Aluminum), 14 to 2/0 AWG (Copper); Number of Spaces 1; Protection Type Overload, Short-Circuit; Connection Type Lug; Operating Temperature Rating 104 Deg F; Applicable Standard IEC

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The EDB14030 Square D / Schneider Electric Miniature from Relectric

Relectric stocks new and used EDB14030 Square D / Schneider Electric Miniature and many more brand-name electrical supplies. All of our reconditioned EDB14030 Square D / Schneider Electric Miniature have been professionally tested and certified, and we guarantee their performance. You can also order your EDB14030 Square D / Schneider Electric Miniature configured to your specifications. Relectric also carries a large stock of replacement parts for the EDB14030 Square D / Schneider Electric Miniature. Contact one of our sales consultants today.
