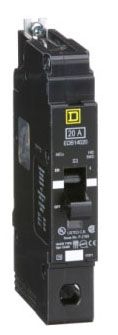

EDB14020 Square D / Schneider Electric Miniature Circuit Breakers
Item # EDB14020

EDB14020

NOTE: Images are for Reference Only

Product Details and Specifications

Type EDB
Amperage 20
Poles 1
Voltage 277
Short Circ Int Cap 18kA@277V
Mounting Type Bolt-On
Accessories HID Rated
Features SWD Rated
Grouping NF Panel

EDB14020 Description

Square D, Miniature, Circuit Breakers, Type EDB, 20A, 1P, 277 VAC, Bolt-On, Thermal Magnetic, Switching Duty Rated, High Intensity Discharge Rated, Interrupting Current: 25 kA at 120 VAC / 18 kA at 240 VAC / 18 kA at 480 VAC Miniature Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$39.00

2728 in stock

$46.00

Ships in 0-2 Working Days

Call For Best Price

638 in stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

0.98" x 4.05" x 5.66", 277 VAC, 20 A, 1-Pole, Panelboard Circuit Breaker
277 Volt AC
20 Amp
1
25 Kiloamp
875 Amp

Features and Benefits

Mercury-Free; RoHS Compliant
RoHS Compliant; 0.98 Inch Width x 4.05 Inch Depth x 5.66 Inch Height; Wire Gauge 12 to 2/0 AWG (Aluminum), 14 to 2/0 AWG (Copper); Holding Current 270 Amp; Operating Temperature Rating 104 Deg F; Breaking Capacity Code D

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The EDB14020 Square D / Schneider Electric Miniature from Relectric

Relectric stocks new and used EDB14020 Square D / Schneider Electric Miniature and many more brand-name electrical supplies. All of our reconditioned EDB14020 Square D / Schneider Electric Miniature have been professionally tested and certified, and we guarantee their performance. You can also order your EDB14020 Square D / Schneider Electric Miniature configured to your specifications. Relectric also carries a large stock of replacement parts for the EDB14020 Square D / Schneider Electric Miniature. Contact one of our sales consultants today.
