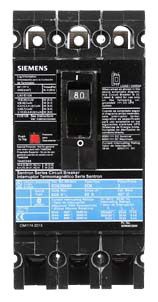

ED63B080 Siemens / ITE Molded Case Circuit Breakers
Item # ED63B080

ED63B080

NOTE: Images are for Reference Only

Product Details and Specifications

Type ED
Amperage 80
Poles 3
Voltage 600
Short Circ Int Cap 25kA@480V
Configuration Bolt-On
Feature 1 LI Functions

ED63B080 Description

Siemens, Molded Case, Circuit Breaker, Sentron Series, Type ED, 80A, 3P, 3PH, 600V, Bolt-On, Load Lugs, Thermal Magnetic, Interrupting Capacity: 25kA at 480V, Long Time & Instantaneous (LI) Trip Functions Molded Case Circuit Breakers from Siemens / ITE

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

600 VAC 50/60 Hz, 500 VDC, 80 A at 40 Deg C, 18/25 kA, 3-Pole, 10 to 1/0 AWG Copper/Aluminum, Load Lug Terminal, ED Frame, Thermal Magnetic Trip Unit, Molded Case Circuit Breaker
Molded Case, Thermal and Fixed Magnetic
3
600 VAC at 50/60 Hz, 500 VDC
80 Ampere at 40 Deg C
65 Kiloampere at 240 VAC, 25 Kiloampere at 480 VAC, 18 Kiloampere at 600 VAC/500 VDC (UL), 65 Kiloampere at 220/240 VAC, 35 Kiloampere at 380/415, 18 Kiloampere at 500 VAC (IEC)

Features and Benefits

Low Voltage Molded Case Circuit Breaker; ED Frame Circuit Breaker are for Use in Individual Enclosures, Panelboards, Switch Boards or Other Approved Equipment; ROHS Compliant
Frame Type ED; Blue Label

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The ED63B080 Siemens / ITE Molded Case from Relectric

Relectric stocks new and used ED63B080 Siemens / ITE Molded Case and many more brand-name electrical supplies. All of our reconditioned ED63B080 Siemens / ITE Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your ED63B080 Siemens / ITE Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the ED63B080 Siemens / ITE Molded Case. Contact one of our sales consultants today.
