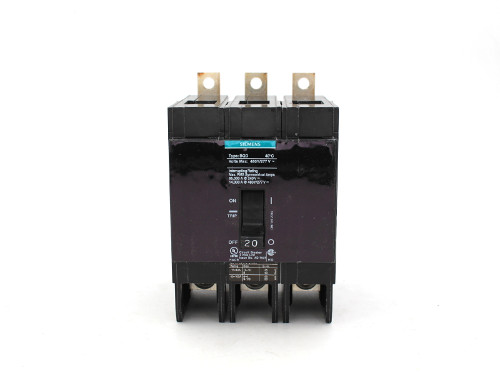

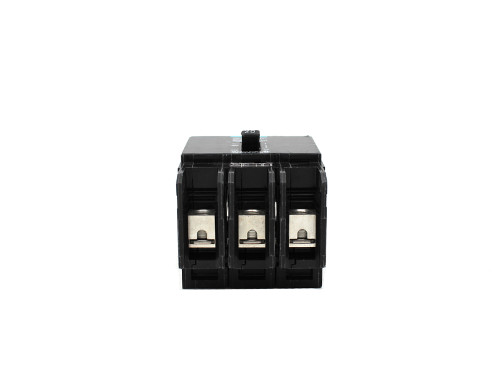

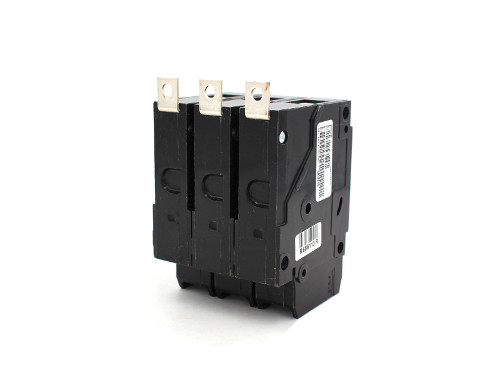

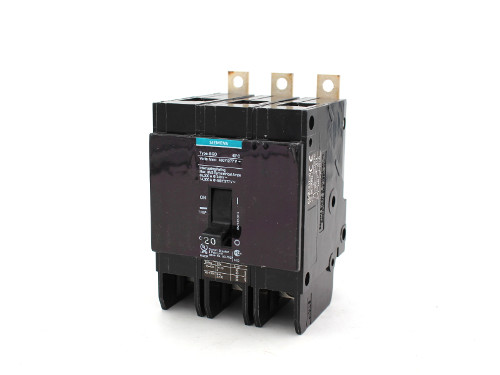

BQD320 Siemens / ITE Molded Case Circuit Breakers
Item # BQD320

BQD320

NOTE: Images are for Reference Only

Product Details and Specifications

Type BQD
Amperage 20
Poles 3
Voltage 480
Short Circ Int Cap 14kA@480V
Configuration Load Lugs

BQD320 Description

Siemens, Molded Case, Circuit Breakers, Type BQD, 20A, 3P, 480 VAC, Load Lugs, Thermal Magnetic, Interrupting Current: 65 kA at 240 VAC / 14 kA at 480 VAC Molded Case Circuit Breakers from Siemens / ITE

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$147.28

60 in stock

$191.46

Ships in 0-2 Working Days

$228.31

8 in stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

480 VAC Star/277 VAC, 20 A, 14 kA, 3-Pole, Bolt-On Mount, Molded Case, Branch, Thermal Magnetic, Panelboard Circuit Breaker
Branch, Molded Case, Thermal and Fixed Magnetic
480 Star/277 Volt AC 50/60 Hertz
20 Amp at 40 Deg C
3
14 Kiloamp at 480 Star/277 Volt AC

Features and Benefits

HACR Rated
REACH/RoHS/WEEE Compliant; Frame Type BQD; Terminal Type Load Lug; Size 3 Inch Width x 2.7 Inch Depth x 4.49 Inch Height

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The BQD320 Siemens / ITE Molded Case from Relectric

Relectric stocks new and used BQD320 Siemens / ITE Molded Case and many more brand-name electrical supplies. All of our reconditioned BQD320 Siemens / ITE Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your BQD320 Siemens / ITE Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the BQD320 Siemens / ITE Molded Case. Contact one of our sales consultants today.
